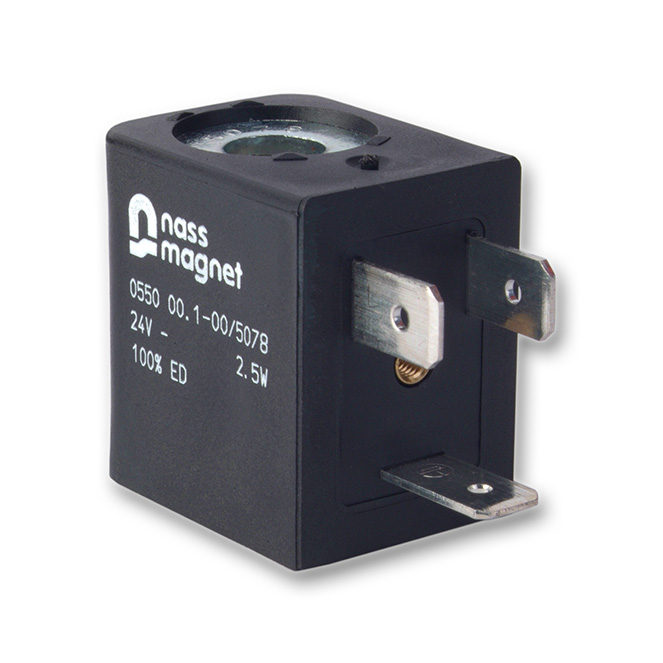

Solenoid Coil

Width: 22 mm
Connection type: industry form
Moulding material: thermoplastic
Voltage tolerance: ± 10 %
Ambient temperature: - 20 °C to + 50 °C
Relative duty cycle: 100 %
Insulation class of insulating materials according to DIN VDE 0580: F
Degree of protection with connector according to EN 60529: IP 65
Imprint: nass magnet (customer imprint possible)
Protection class: 1
Solenoid Coil, 22 mm, industry form, thermoplastic
