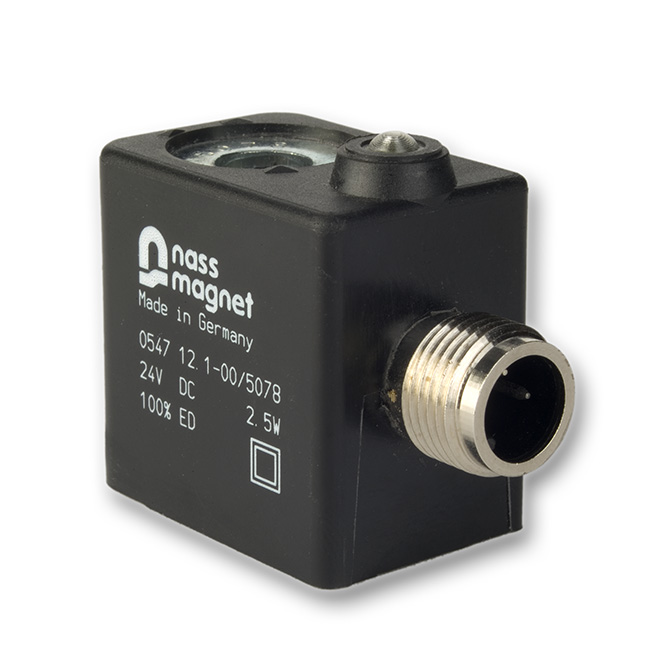

Solenoid Coil
| Width: | 22 mm |
| Connection type: | M 12 metal thread |
| Moulding material: | thermoset resin |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 20 °C to + 50 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection with connector according to EN 60529: | IP 65 (IP 67 on request) |
| Imprint: | nass magnet (customer imprint possible) |
| Protection class: | 2 |
Further details can be found in our page Catalogues
