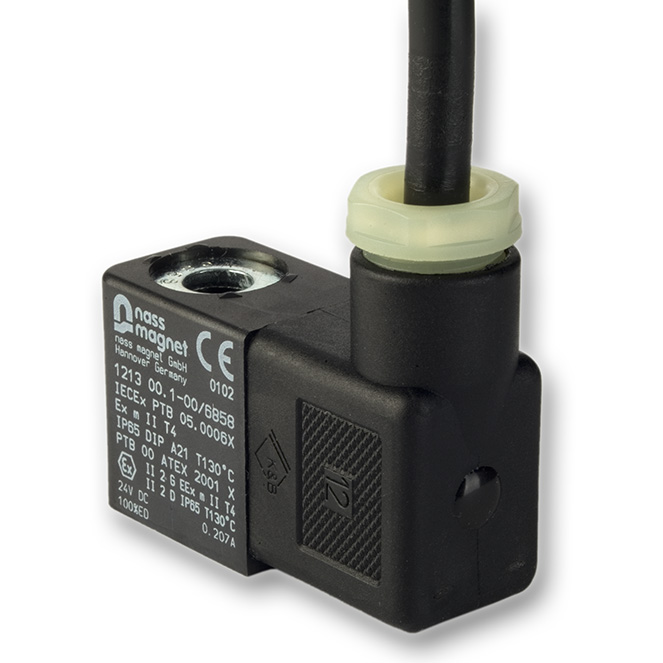

Solenoid Coil System 8 ATEX
| Width: | a)22 mm and b)30 mm |
| Protection by encaps.: | a) ll 2 G Ex mb IIC T5, T4 Gb ll 2 D Ex mb tb IIIC T95 °C, T130 °C Db IP65b) ll 2 G Ex mb IIC T6, T5, T4 Gb ll 2 D Ex mb tb IIIC T80 °C, T95 °C, T130 °C Db IP65 |
| Connection type: | three-wired cable, with sleeve |
| Moulding material: | thermoplastic |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 20 °C to + 40 °C/+ 50 °C/+ 60 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection: | IP 65 |
| Type examination certificates: | a) PTB 00 ATEX 2001 X b) PTB 03 ATEX 2018 X, IECEx PTB 04.0002X |
| Imprint: | nass magnet (customer imprint possible) |
| Cable length: | 3 m (other cable lengths on request) |
Further details can be found in our page Catalogues
