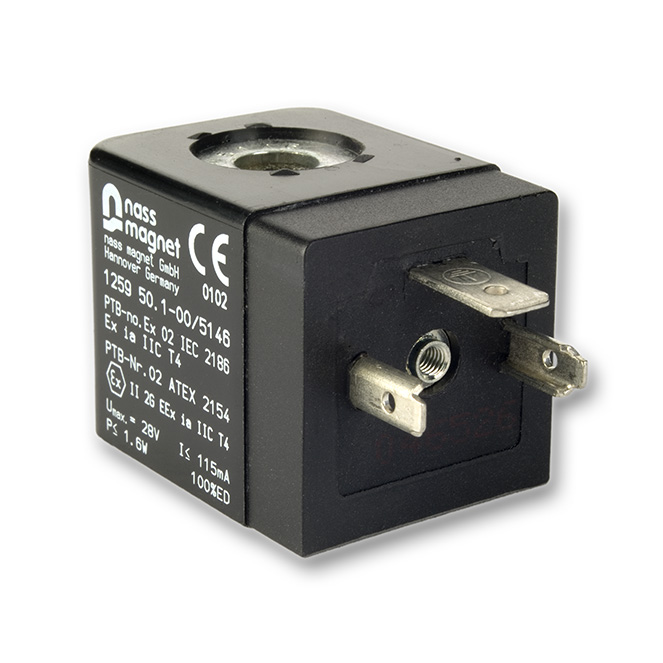

Solenoid Coil System 8 ATEX
| Width: | 30 mm |
| Intrinsic safety: |  ll 2 G Ex ia IIB/IIC T6/T4 Ga |
| Connection type: | form A – EN 175301-803-A |
| Moulding material: | thermoset resin |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 40 °C to + 50 °C/+ 85 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection with appropriate connector: | IP 65 |
| Type examination certificate: | PTB 02 ATEX 2154, IECEx PTB 08.0023 |
| Imprint: | nass magnet (customer imprint possible) |
Further details can be found in our page Catalogues
