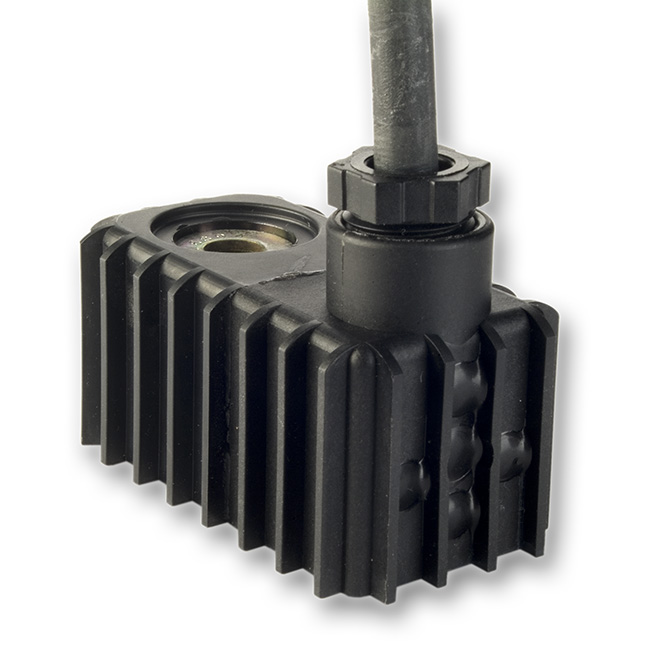

Solenoid Coil System 8 ATEX
| Width: | 36 mm |
| Protection by encaps.: |  ll 2 G EEx ma ll T4, T5, T6 · ll 2 D IP65 T80 °C, T95 °C, T130 °C |
| Connection type: | cable flexible at low temperatures, with ferrules |
| Moulding material: | thermoplastic |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 50 °C to + 50 °C/60 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580 | F |
| Degree of protection: | IP 65 (IP 67 on request) |
| Imprint: | nass magnet (customer imprint possible) |
| Cable length: | 3 m (other cable lengths on request) |
Further details can be found in our page Catalogues
