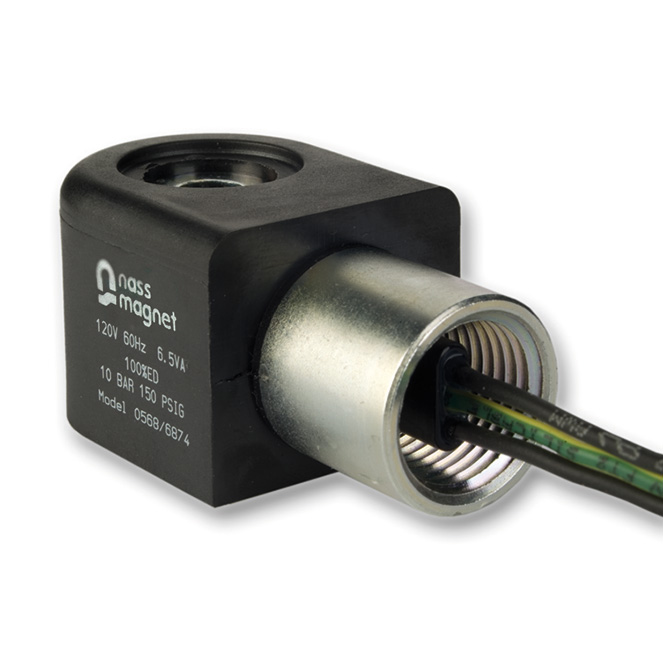

Solenoid Coil System 8 CSA/FM
| Width: | 36 mm |
| Protection by encaps.: | CSA CLASS 2258 02 – process control equipment – for hazardous locations FM CLASS 3600, 3611, 3615, 3810 – hazardous (classified) location electrical equipment |
| Approval: | Ex m II T4 |
| Connection type: | three-wired end sleeve for strands, thread ½-NPT for cable conduit |
| Moulding material: | thermoplastic |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 20 °C to + 60 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580: | H |
| Degree of protection with appropriate cable conduit: | IP 65 |
| Type examination certificate: | CSA 202633, FM 3006713 |
| Imprint: | nass magnet (customer imprint possible) |
Further details can be found in our page Catalogues
