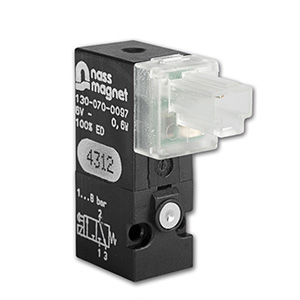

Solenoid Valve System 3-10
| Switching function: | 3/2 way (2/2 way on request) |
| De-energized state: | NC (normally closed), NO (normally open) |
| Electrical Connection: | USC |
| Operating voltage: | 12 V DC, 24 V DC |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 10 °C to + 50 °C |
| Relative duty cycle: | 100 % |
| Activation/deactivation period according to ISO/CD12238: | norminal 5 ms/5 ms |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection with connector according to EN 60529: | IP 40 (see type of contact) |
| Class of protection: | 3 |
| Quality of medium according to ISO 8573-1: | Compressed quality air class 3, 3, 3 |
| Mounting position: | any (preferably plunger in vertical direction) |
| Imprint: | nass magnet (customer imprint possible) |
Further details can be found in our page Catalogues
