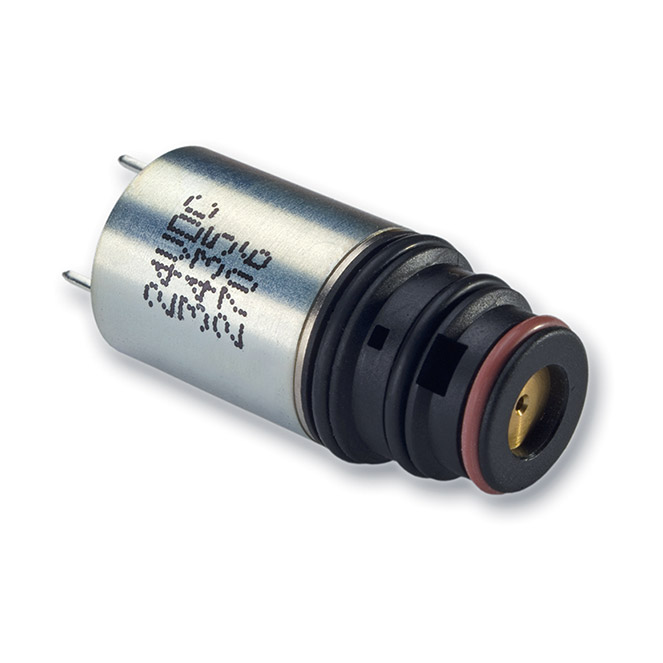

Solenoid Valve Cartridge 9
| Switching function: | 2/2 way, 3/2 way |
| De-energized state: | NC (normally closed), NO (normally open) |
| Operating voltage: | 6 V DC, 12 V DC , 24 V DC |
| Sealing material: | sealing element NBR |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 10 °C bis + 40 °C (+ 70 °C with accessoires possible) |
| Relative duty cycle: | 100 % |
| Activation/deactivation period according to ISO/CD12238 | 5 ms/6 ms |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection with connector according to EN 60529: | IP 00 |
| High voltage test according to VDE 0580: | 500 V |
| Class of protection: | 3 |
| Quality of medium: | Compressed quality air class 2, 3, 3 |
| Mounting position: | any (preferably plunger in vertical direction) |
Further details can be found in our page Catalogues
