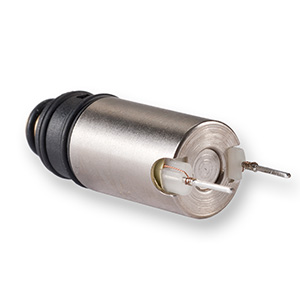

Solenoid Valve Cartridge 9
| Switching function: | 3/2 way, 2/2 way |
| De-energized state: | NC (normally closed), NO (normally open) |
| Operating voltage: | 24 V DC |
| Sealing material: | sealing element NBR | Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 10 °C bis + 40 °C (+ 50 °C with accessoires possible) |
| Relative duty cycle: | 100 % |
| Activation/deactivation period according to ISO/CD12238 | norminal 6 ms/6 ms |
| Insulation class of insulating materials according to DIN VDE 0580: | Y |
| Degree of protection with connector according to EN 60529: | IP 00 |
| High voltage test according to VDE 0580: | 500 V |
| Quality of medium according to ISO 8573-1: | Compressed air class 3, 3, 3 |
| Mounting position: | any (preferably plunger in vertical direction) |
| Imprint: | nass magnet (customer imprint possible) |
