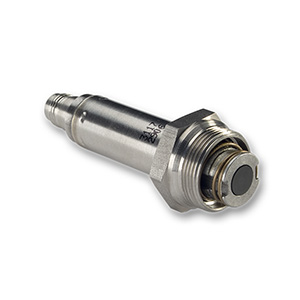

Armature Assembly GW (THREAD)

Switching function: 2/2 and 3/2 way
De-energized state: NC (normally closed), NO (normally open)
Connection type: thread M 20 x 1, metal sealing or with O’ring shading ring for AC versions (without nonferrous metal on request)
Ambient temperature: -10 °C to + 50 °C
Sealing material: FKM (other sealing materials on request)
Quality of medium according to ISO 8573-1 when using FKM sealing elements: compressed air class 4, 3, 4
Mounting position: any (preferably plunger in vertical direction)

Further details can be found in our page Catalogues
