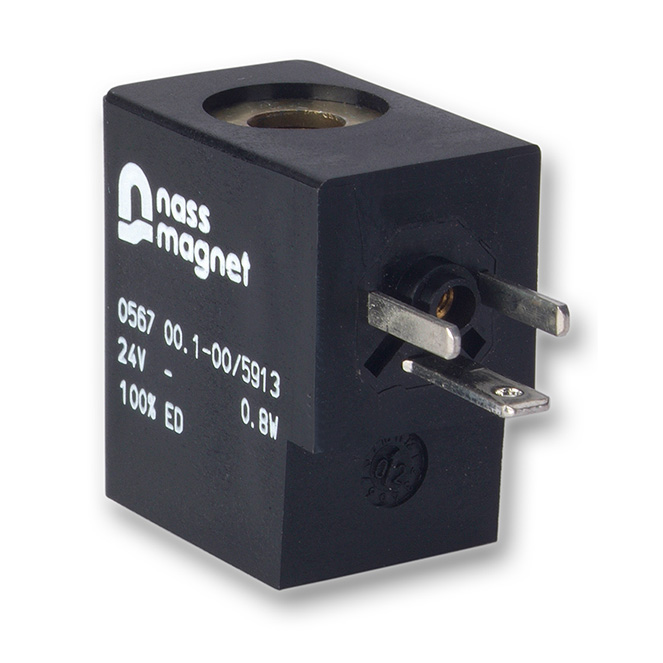

Solenoid Coil

Width: 16,5 mm
Connection type: form C – EN 175301-803-C
Moulding material: thermoplastic
Voltage tolerance: ± 10 %
Ambient temperature: - 20 °C to + 50 °C
Relative duty cycle: 100 %
Insulation class of insulating materials according to DIN VDE 0580: F
Degree of protection with connector according to EN 60529: IP 65
Imprint: nass magnet (customer imprint possible)

Further details can be found in our catalog (PDF)
