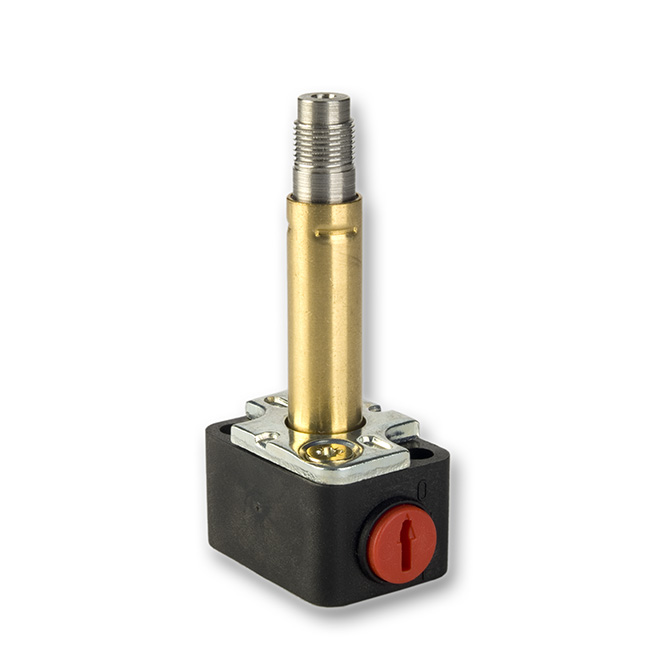

Valve System KR

Switching function: 3/2 way
De-energized state: NC (normally closed)
Valve body: plastics
Gasket of the pneumatic interface: concentric O’rings (KR) sealing material FPM
Ambient temperature: - 10 °C to + 50 °C
Quality of medium according to ISO 8573-1: compressed air class 4, 3, 4
Mounting position: any (preferably plunger in vertical direction)
Valve System KR, 3/2 way, NC (normally closed), plastics

Further details can be found in our page Catalogues
